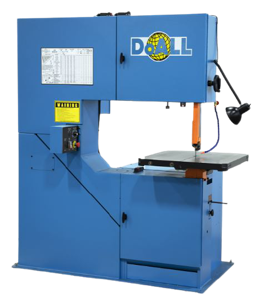

doall vertical contour bandsaw picture

Doall Sawing Products

V-Series

Vertical-Contour, Small footprint, capacity to fit all needs

DoALL invented the metal-cutting band saw and its vertical contour line remains the shop workhorse for contour, straight, friction and multiple-piece cutting in machine shops, tool and die rooms, maintenance departments and trade schools. The 2013 and 3613 series (20" and 36" throat) use a 3 HP or 5 HP inverter drive with a two-range transmission covering 30 to 5,500 fpm, a 26" x 26" table tilting 45 degrees one way and 10 the other, and accept blades from 1/8" to 1" wide. The 2012-VH adds a hydraulic power-feed table with adjustable feed force. The ZV-3620 Zephyr is a 15 HP high-speed machine for exotic and non-metallic materials, running up to 15,000 fpm with 36" x 20" capacity. A column-mounted DBW-15 blade welder with grinder is optional.

Models 2013-V2, 2013-V3, 2013-V5, 2012-VH, 3612-VH, 3613-V3, 3613-V5, ZV-3620, TF-2028M tilt frame
Throat x Work Height 2013/2012 series 20" x 12-13"; 3613 series 36" x 13"; ZV-3620 36" x 20"
Table 26" x 26" (660 mm), tilts 45 degrees one way / 10 the other; ZV-3620 30" x 30", 45/5 degrees
Blade Width Range 1/8" to 1" (ZV-3620: 1/4" to 1")
Blade Length 154" (2013/2012); 199" (3613); 234" (ZV-3620)
Band Speed V3: 30-320 and 550-5,500 fpm; V5: 550-5,500 fpm; ZV-3620: 1,000-15,000 fpm in three ranges
Motor 3 HP (V3, VH), 5 HP (V5), 15 HP inverter (ZV-3620)
Table Feed (2012-VH) Hydraulic power table, 12" stroke, adjustable feed rate and force; 1.5 HP pump
Blade Welder DBW-15 welder with grinder, column mounted, optional on all models
Weight 1,250 lb (2013-V3); 1,550 lb (3613-V5); 1,900 lb (2012-VH); 4,500 lb (ZV-3620)
